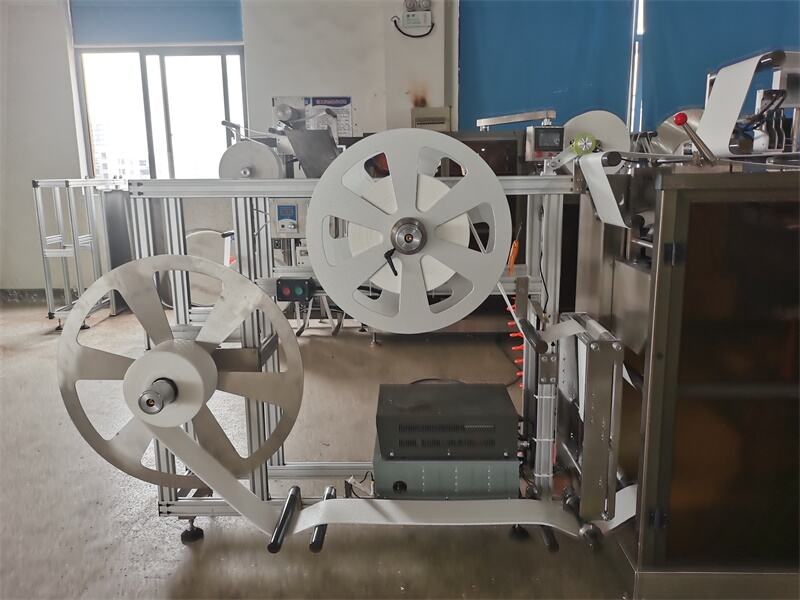

TX-80 Thick sole Slipper Making Machine

Fully Automated Production：
From feeding to welding and cutting, the entire line runs automatically.

Compact & Efficient Design：
Novel structure with small footprint, stable operation, and high yield.

Customizable Features：

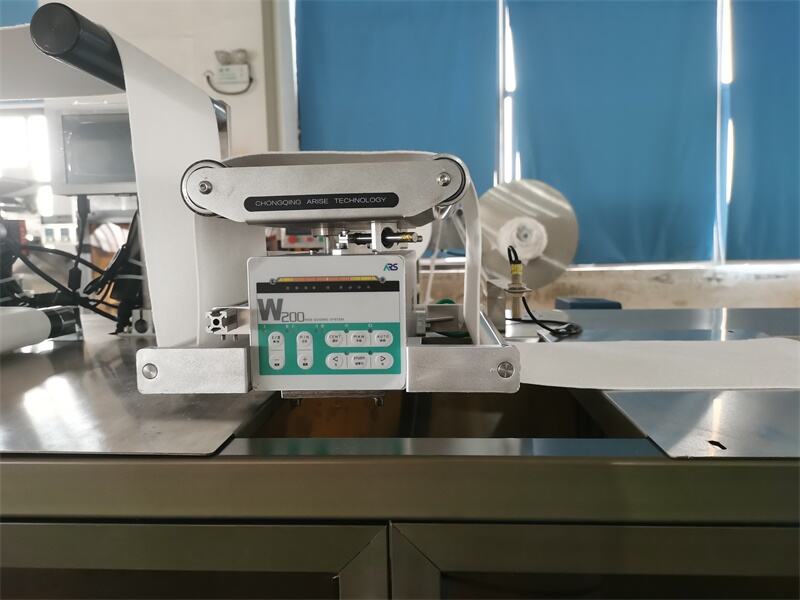

Optional embossing and intelligent logo spraying for premium products.

Introduction

In response to the growing demand for mid to high end disposable slippers in the market, our company has meticulously researched the structure and process flow of slippers, innovative designed and rationalized the layout of slipper machine equipment. From the roll material passing through a segmented mechanism, automatic upper making, roll material automatic feeding, roll material automatic spraying, ultrasonic welding, traction, rolling cutting, finished product output, to automatic completion of the entire line. It can be equipped with a roll embossing mechanism and an intelligent logo spraying system. The whole machine has a novel structure, small footprint, stable and reliable operation, convenient control, fast adjustment, and high yield.

Specifications and Parameters:

Items	TX-80
Production Speed	50-90 pieces/minute
Power Supply	AC380V，50Hz/60Hz
Total Power	16kw
Ultrasonic Welding Pressure Frequency	8kHz×2pieces
Dimension	4825mm * 1850mm * 1685mm
Weight	2200Kg

Machine Features:

3.1 Solid materials used

The whole machine is mostly welded with steel plates for aging and shaping, and the surface of the body is finely processed to ensure accurate installation shape and position. The body is stable and heavy, eliminating the impact of mechanical and ultrasonic vibration on the stability of equipment operation, and increasing the service life of the equipment.

3.2 Servo Control System

Using a servo system for drive control, ensuring that each workstation is always in synchronous operation. The position adjustment of each workstation is parameterized through a human-machine interface, which is convenient, fast, and intuitive to operate, avoiding the inconvenience or damage caused by mechanical adjustment.

3.3 Automatic Discharge And Waste Collection

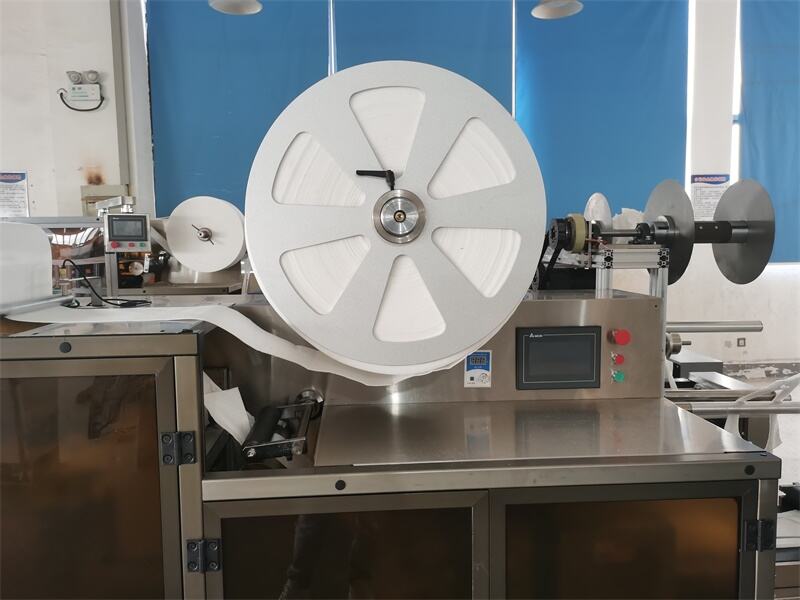

Using a roll film automatic feeding system, the tension is constant during the roll film feeding process, the feed position is precise, and the cutting position is uniform. It can greatly increase the yield of finished products. After discharge, the waste edge is equipped with a large waste collection mechanism, which can effectively save labor and factory space, and improve production efficiency.

3.4 Automatic Glue Spraying System

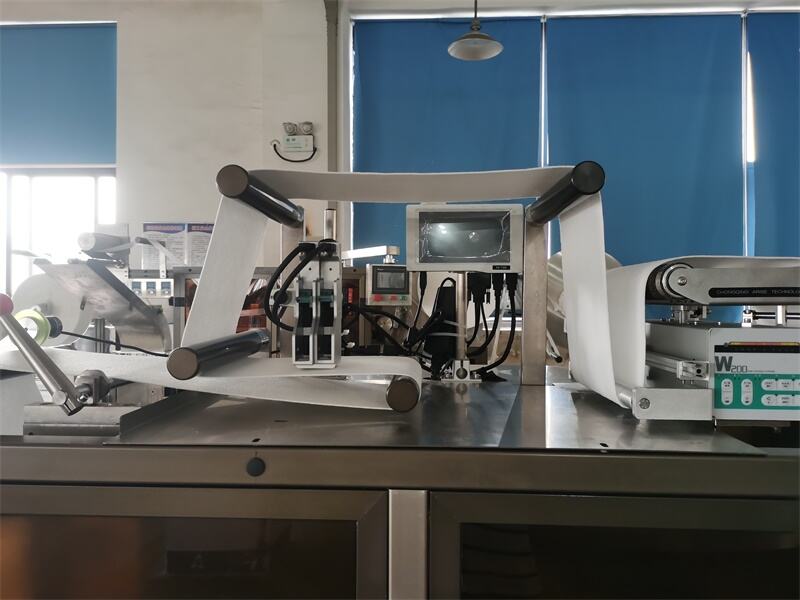

The automatic glue spraying system consists of a main unit and a nozzle. It has functions such as fine atomization, targeted glue spraying, controllable glue amount, convenient cleaning, and adjustable glue spraying position, which ensures even product spraying while saving glue amount.

3.5 Flywheel Folding

The flywheel folding mechanism is independently controlled by a servo. After the coil is segmented, it enters the folding mechanism for positioning and folding. It has functions such as adjustable folding angle, precise synchronization, and controllable folding position.
