JC-500D Automatic Plastic Products Thermoforming Machine

JC-500D Automatic Plastic Products Thermoforming Machine

Integrated Thermoforming：

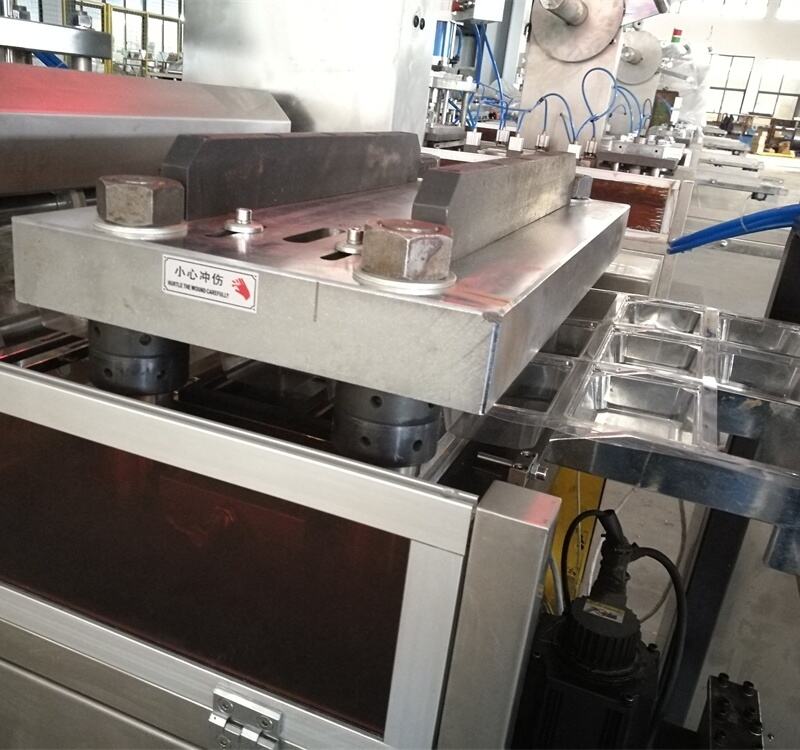

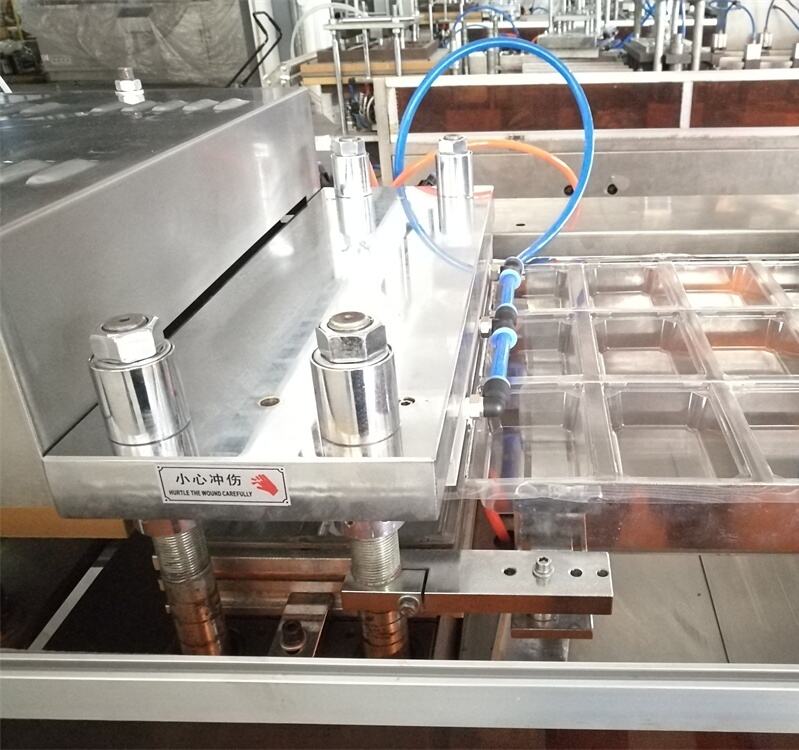

Combines forming, punching, and cutting in one efficient process.

Safe & Easy Operation：
Reduces labor, minimizes contact, ensures hygienic production.

Consistent Product Quality：
Advanced technology guarantees reliable and high-quality output.

Introduction

JC-500D Automatic Plastic Box Forming Machine is developed by our research and development personnel according to the demand of packing market. Machine adopts thermoforming, punching and cutting as the special properties of product requires of the users. It is with advanced technology, safe and simple operation, which will avoid the consumption of labor on the manual punching and contamination from the touch with the employee. Therefore, the quality requirement is secured during the production.

Specifications and Parameters:

Items	Model: JC-500D
Punch speed	10-35 times/minute
Max. Forming size	470*320mm
Max. Forming depth	47mm
Material	PET, PVC, PS
Max. Sheet Width	500mm
Sheet Thickness	0.15-0.6mm
Sheet Inner Roll Diameter	70~76mm
Stroke	60-330mm
Compressed air(Air Compressor)	0.6-0.8Mpa, around 0.4cbm/minute
Mold Cooling(Chiller)	12~25℃, 50L/H, tap water / recycle water
Heating Power	Heating panels: 4.5kw
Main Motor Power	2.2kw
Total Power	13.5kw
Overall Dimension	44509001800mm
Weight	3000KG

Machine Features:

1.The automatic control is realized by the combination of programmable controller (PLC), man-machine interface, photoelectric system and three-servo system, digitization operation is simple and intuitive.

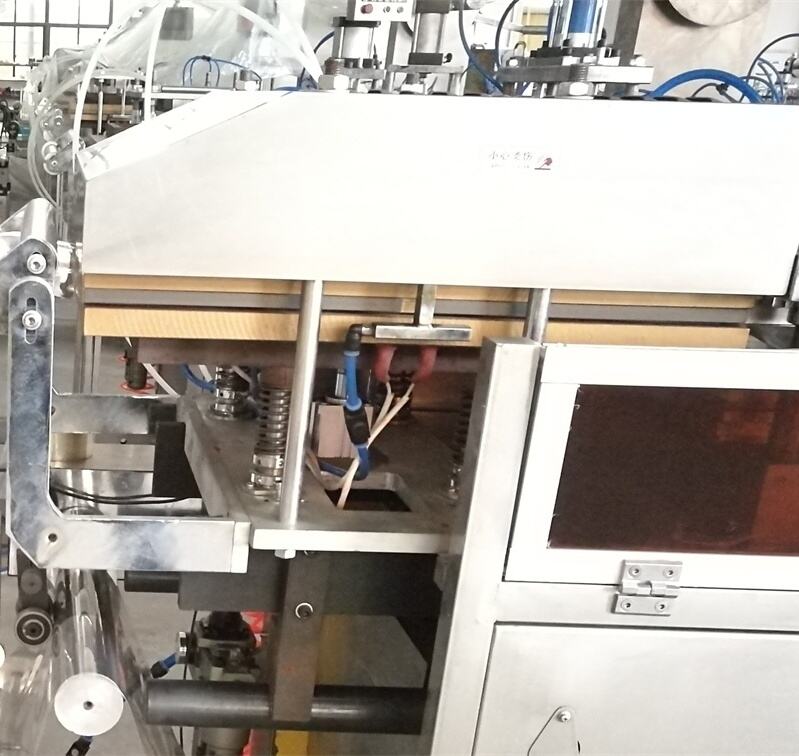

2.Automatic lifting and loading material system is safe and labor-saving, plate type upper and lower preheating device temperature control system is stable to ensure uniform heating, various molding methods to ensure the appearance of the product is beautiful, punching and punching knife are durable and no burr, strong pressure cutting laser knife has low cost and good effect, mold replacement is simple, main engine adopts the frequency conversion speed regulation to run smoothly.

3.The whole body is welded by steel box, the structure is firm and no deformation, the bracket and the box are under pressure molding, high density and no air holes, and the appearance is evenly wrapped with stainless steel, which is beautiful and easy to maintain.

4.The roller servo traction system makes the machine run more stable and reliable, increases the traction length and can directly set the traction length and traction speed in the man-machine interface through PLC programming, which increases the forming area and expands the applicable range of the machine.

5.Adopt planar linkage mechanism is to make larger transmission force , smaller inertia effect, stable operation, and larger pressure cutting force. Equipped with intelligent servo control system, laser knife is small in size, low in cost, convenient in adjustment and replacement, after the finished product is cut, the product is smooth and no burr.

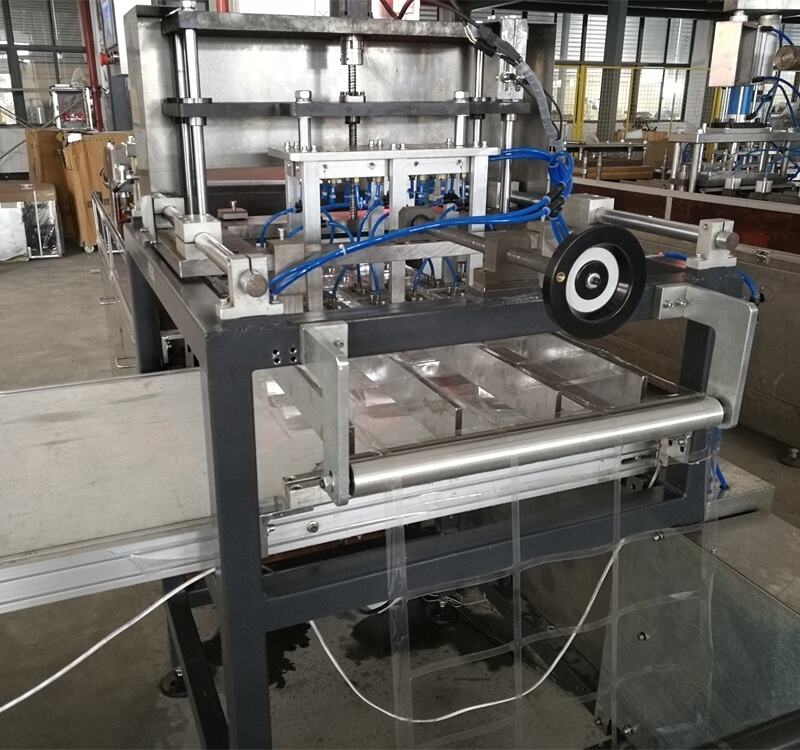

6.This machine is also equipped with a powerful automatic servo stacking system, which can save labor costs for users.

7.Can be equipped with the function of cursor-to-version.

Application Scenarios:

Use PVC, PET, PS, as raw materials, changing the mold at one machine to manufacturing lids, covers, trays, plates, boxes, food and medical trays, etc.
