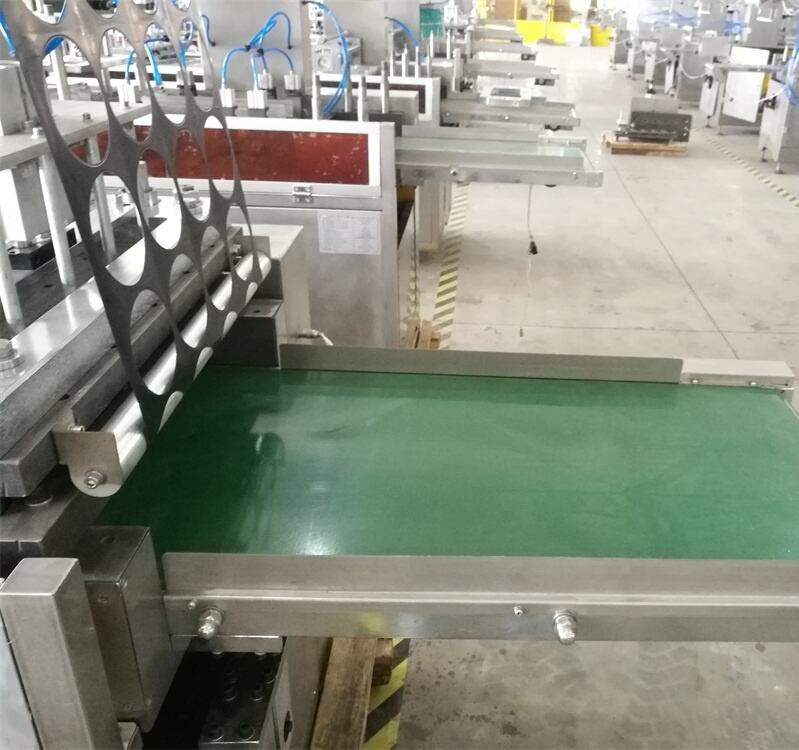

JC-500C Cup Lid Making Machine

Integrated Thermoforming：
Combines forming, punching, and cutting in one streamlined process.

Safe & Easy Operation：
Reduces labor, minimizes contact, ensures hygienic production.

Reliable Product Quality：
Advanced technology maintains consistent, high-quality output.

Introduction

JC-500C Automatic Cup Lid Making Machine is developed by our research and development personnel according to the demand of packing market. Machine adopts thermoforming, punching and cutting as the special properties of product requires of the users. It is with advanced technology, safe and simple operation, which will avoid the consumption of labor on the manual punching and contamination from the touch with the employee. Therefore, the quality requirement is secured during the production.

Specifications and Parameters:

Items	Model: JC-500C
Punch Speed	10-35 times/minute
Max. Forming Size	470*290mm
Max. Forming Depth	47mm
Raw Material	PVC, PET, PS
Max. Sheet Width	500mm
Sheet Thickness	0.15-0.6mm
Sheet Inner Roll Diameter	75mm
Stroke	60-300mm
Compressed Air(Air Compressor)	0.6-0.8Mpa, around 0.3cbm/minute
Mold Cooling(Chiller)	20℃, 60L/H, tap water / recycle water
Total Power	11.5Kw
Main Motor Power	2.2Kw
Overall Dimension	350010001800mm
Weight	2400 KG

Machine Features:

1.The machine realizes automatic control through the combination of programmable controller (PLC), man-machine interface, encoder, photoelectric system, etc., and the operation is simple and intuitive.

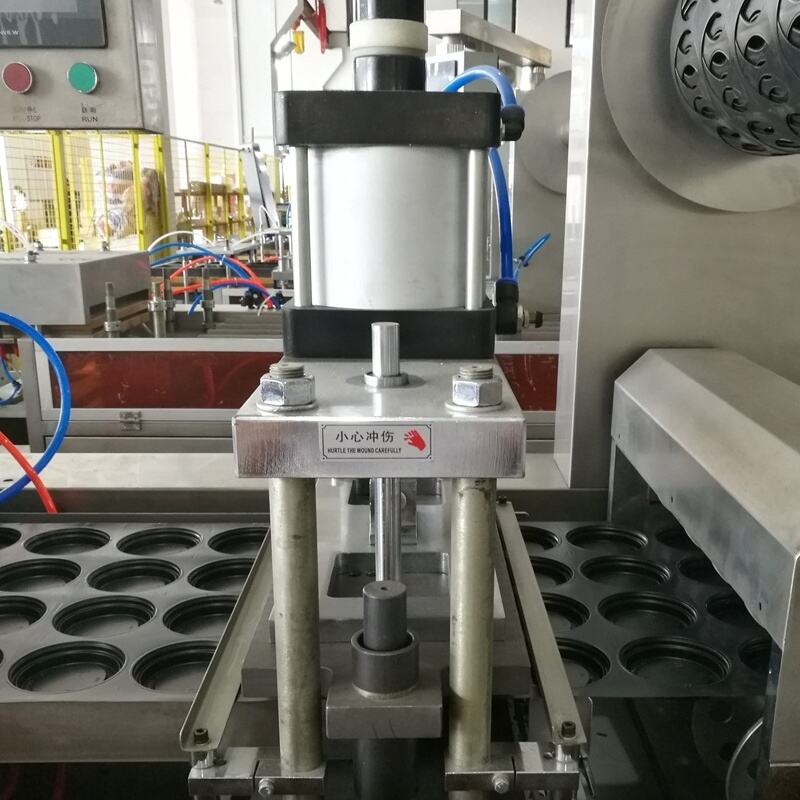

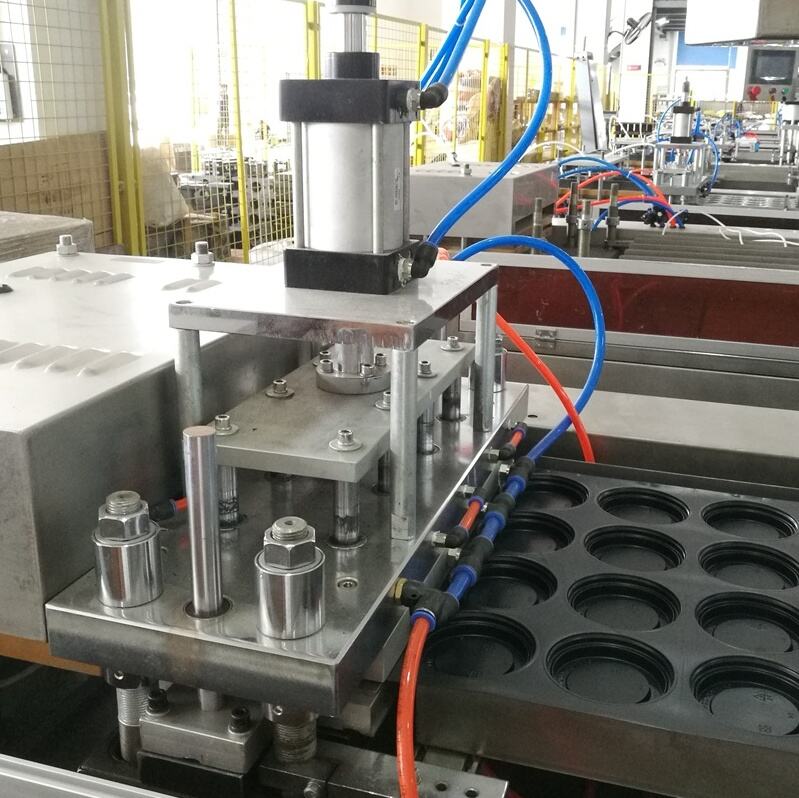

2.The mechanical transmission adopts the reducer and the main rotation connection. Forming, punching, pulling, and cutting stations are on the same axis to ensure operational synchronization (reduced transmission error).

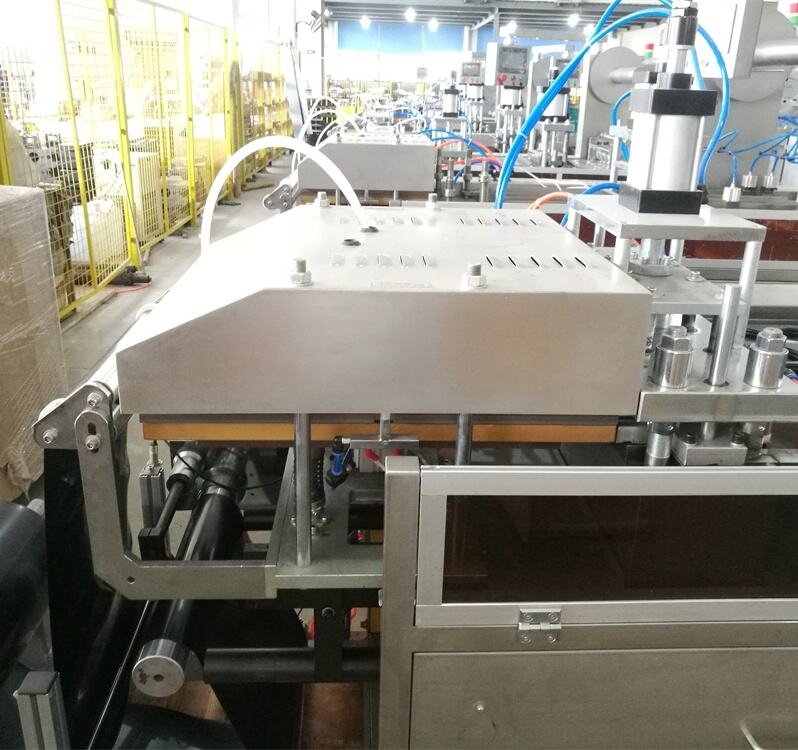

3.Automatic lifting and loading material system is safe and labor-saving, plate type upper and lower preheating device temperature control system is stable to ensure uniform heating, various molding methods to ensure the appearance of the product is beautiful, servo traction are intelligent and reliable, punching and punching knife are durable and no burr, mold replacement is simple, main engine adopts the frequency conversion speed regulation to run smoothly.

4.The whole body is welded by steel box, the structure is firm and no deformation, the bracket and the box are under pressure molding, high density and no air holes, and the appearance is evenly wrapped with stainless steel, which is beautiful and easy to maintain.

5.The roller servo traction system makes the machine run more stable and reliable, increases the traction length and can directly set the traction length and traction speed in the man-machine interface through PLC programming, which increases the forming area and expands the applicable range of the machine.

Application Scenarios:

Use PVC, PET, PS, as raw materials, changing the mold at one machine to manufacturing lids, covers, trays, plates, boxes, food and medical trays, etc.
