JCPP-520 PP Thermoforming Machine

Integrated Thermoforming：
Combines forming, punching, and cutting in a single efficient process.

Safe & Easy Operation：
Reduces labor, minimizes contact, ensures hygienic production.

Reliable Product Quality：
Advanced technology guarantees consistent, high-quality output.

Introduction

JCPP-520 Automatic Plastic PP Thermoforming Machine is developed by our research and development personnel according to the demand of packing market. Machine adopts thermoforming, punching and cutting as the special properties of product requires of the users. It is with advanced technology, safe and simple operation, which will avoid the consumption of labor on the manual punching and contamination from the touch with the employee. Therefore, the quality requirement is secured during the production.

Specifications and Parameters:

Items	Model: JCPP-520
Punch Frequency	10-35(times/minute)
Max.Forming Area	470*340mm
Max.Forming Depth	55mm
Stroke	60-350mm
Raw Material	PVC, PET, PP, PS
Sheet Thickness	0.15-0.6mm
Max. Sheet Width	520mm
Sheet Inner Roll Diameter	75mm
Heating Power	Up heating: 26kw, Down heating: 16kw
Main Motor Power	2.2kw
Total Power	48kw
Air(Air Compressor)	>0.6m³, 0.6-0.8Mpa
Mold Cooling(Chiller)	20℃, 60L/H, tap water / recycle water
Overall Dimension	635024001800mm(LWH)
Weight	4245kg

Machine Features:

1.The machine realizes intelligent control through the combination of programmable controller (PLC), man-machine interface, encoder, photoelectric system, etc., and the operation is simple and intuitive.

2.Adopt the coaxial mechanical transmission mode to make the synchronization performance more reliable and stable.

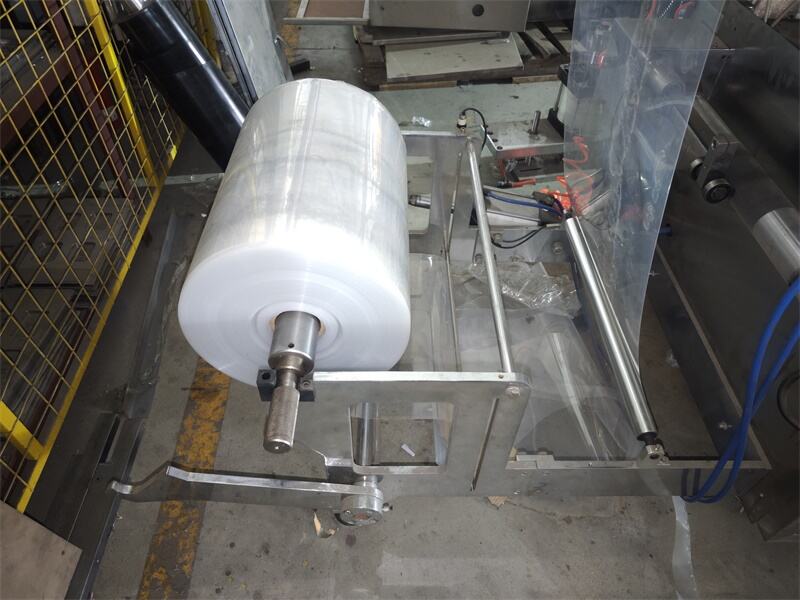

3.Automatic lifting and loading material system is safe and labor-saving, upper and lower radiation preheating device temperature control system is stable to ensure uniform heating, various molding methods to ensure the appearance of the product is beautiful, servo traction are intelligent and reliable, punching and punching knife are durable and no burr, mold replacement is simple, main engine adopts the frequency conversion speed regulation to run smoothly.

4.Adopt matrix heating tile infrared radiation heating, high-precision temperature control system for temperature control.

5.The fixed-point servo traction system equipped with the gear chain, and the material of chain guide rail is provided with a heat-treated aluminum profile and has a cooling system, stroke positioning is accurate and long service life.

6.Adopt planar linkage mechanism is to make larger transmission force , smaller inertia effect, stable operation, and larger pressure cutting force. Equipped with intelligent servo control system, laser knife is small in size, low in cost, convenient in adjustment and replacement, after the finished product is cut, the product is smooth and no burr.

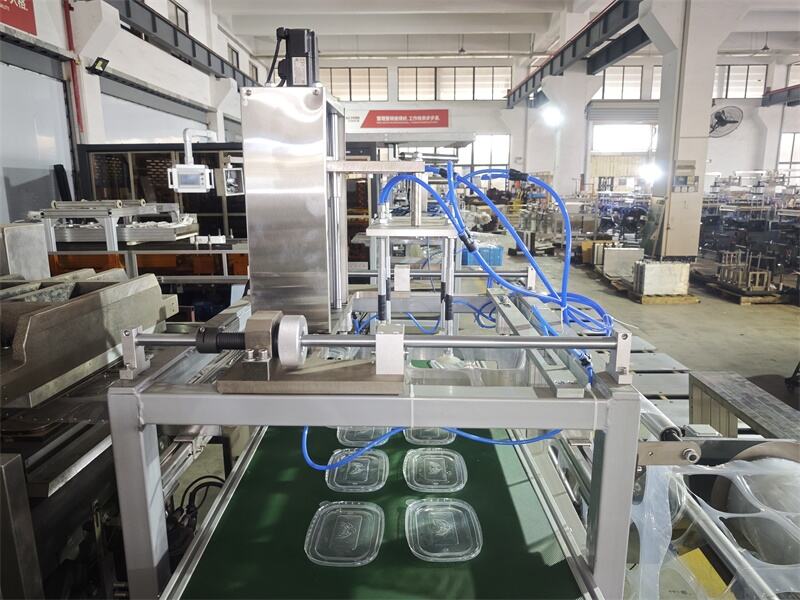

7.This machine is also equipped with a powerful automatic servo stacking system, which can save labor costs for users.

8.The appearance of the whole machine is sprayed and the appearance is beautiful and easy to maintain.

9.PP/PET/PVC/PS, all can use in this machine

Application Scenarios:

Use PVC, PET, PS, PP as raw materials, changing the mold at one machine to manufacturing lids, covers, trays, plates, boxes, food and medical trays, etc.
