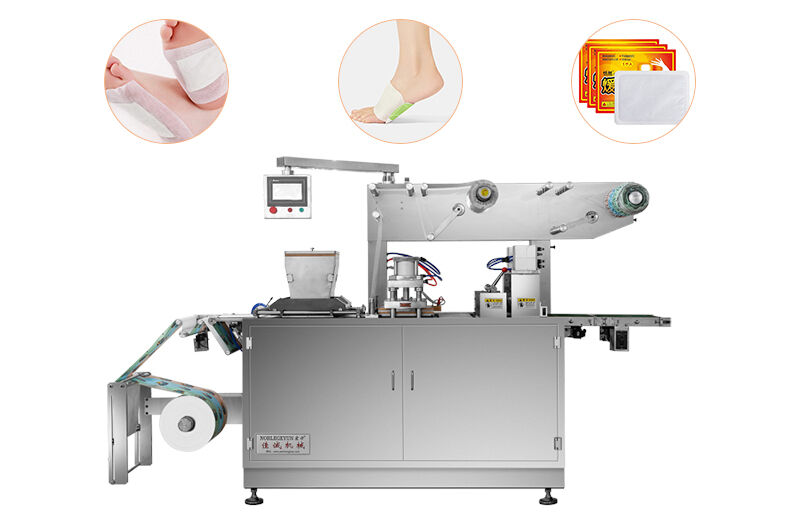

Heating Pad Making Machine

Powerful & Stable Operation：
Strong motor, compact design, easy maintenance, and long-lasting performance.

Precise & Attractive Packaging：
Automatic film feeding, plate heating, and four-side sealing ensure flat, well-sealed pads.

Intelligent Automation & Control：
PLC-controlled pneumatic system and touch-screen operation allow smooth, synchronized, and programmable production.

Introduction

Automatic Warmer Pad Making Machine is developed by our research and development personnel according to the demand of packing market. Can produce different kinds of warm pad to cater to different needs of customers. Such as warm pad, foot warmer pad, warm knee pad, hand warmer pad, shoulder warmer pad, warm stomach pad, warm toe pad and other warm pads.

Specifications and Parameters:

Items	ZNB-330
Rolling Cutting Speed	15-40times/minute
Productivity	180pcs/time(6pcs/time, 300times/minute)
Max.pack.size	330*270mm
Degree Of Automation	Automatic
Function	Filling,measurement,others
Packing Material	Non-woven fabric, stickers compound material
Substance	Powder
Total Power	10.5Kw (380V)
Compressed Air(MPa)	0.6-0.8 MPa
Mold Cooling	60L/H, tap water/recycle water
Dimension	29707001890mm
Weight	1500Kg

Machine Features:

1.Strong power, high intensity, compact structure, stable operation, easy maintenance, longer usage .

2.Automatic film feeding, plate heating, four-sides sealing, firmly sealed, the bag is flat and beautiful.

3.Speed reducer, main-rotating connection, main shaft are on one line (to decrease driving error) for mechanical transmission.

4.Sensor controls are adopted in pneumatic system. PLC controls are adopted in pneumatic system. PLC control makes the whole machine run smoothly, keeps synchronous stability during the products are to be packed in multi-labor and long-distance.

5.Touch screen operation, configuration of servo traction system. The traction length and time can be programmed by PLC, and the operation can be set directly in the touch screen.

6.Automatic film feeding, automatic feeding, upper and down netting, cylinder sealing, servo traction, stable running, easy operation, high automatic grade. Optional bottom film or cover film cursor tracking for version sealing configuration, double film roll automatic film feed.

7.More advanced blanking mechanism is adopted, which greatly improves the service life of the die, reduces the defective rate, reduces the noise and co vibration of the equipment operation, and makes the powder materials more stable during operation.

8.A magnetic suction device is added to better shape the powder materials that can be absorbed, avoid the phenomenon of loose materials, reduce the air content in the material package and delay the reaction process.

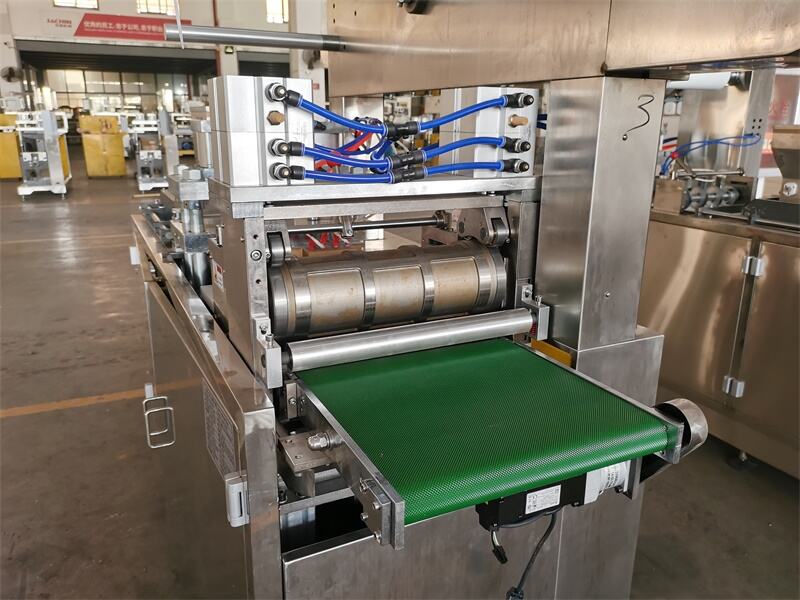

More advanced rolling cutting mode is adopted, which greatly improves the service life of the die, reduces the defective rate, and reduces the noise and co vibration of the equipment operation.

Application Scenarios:

Changing the mold at one machine to manufacturing warm pad, foot warmer pad, warm knee pad, hand warmer pad, shoulder warmer pad, warm stomach pad, warm toe pad and other warm pads.
