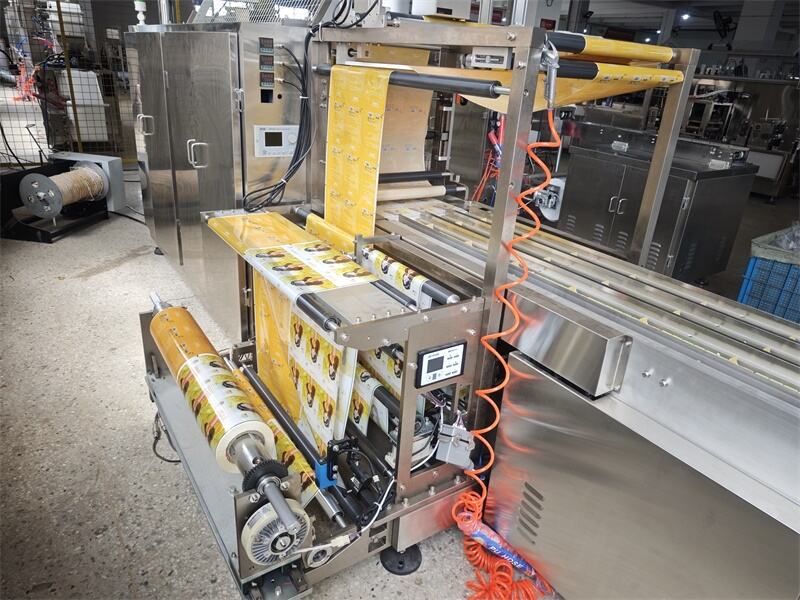

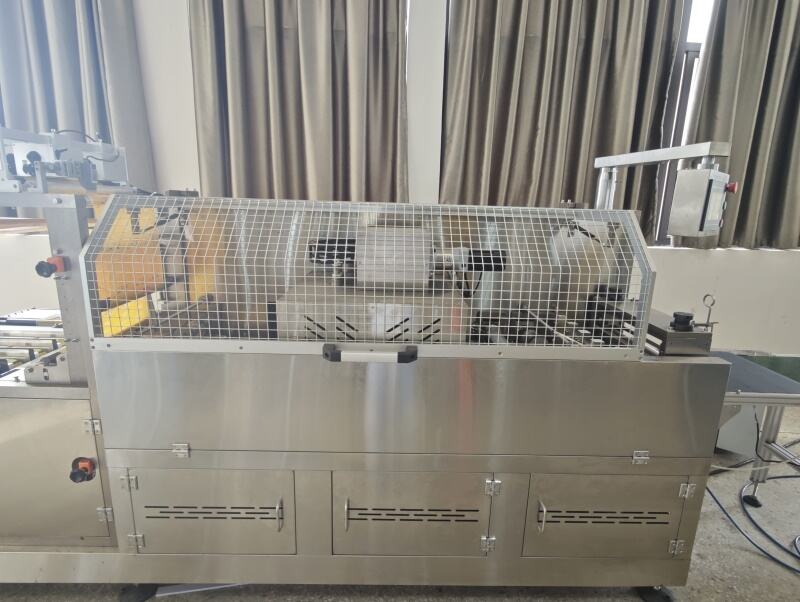

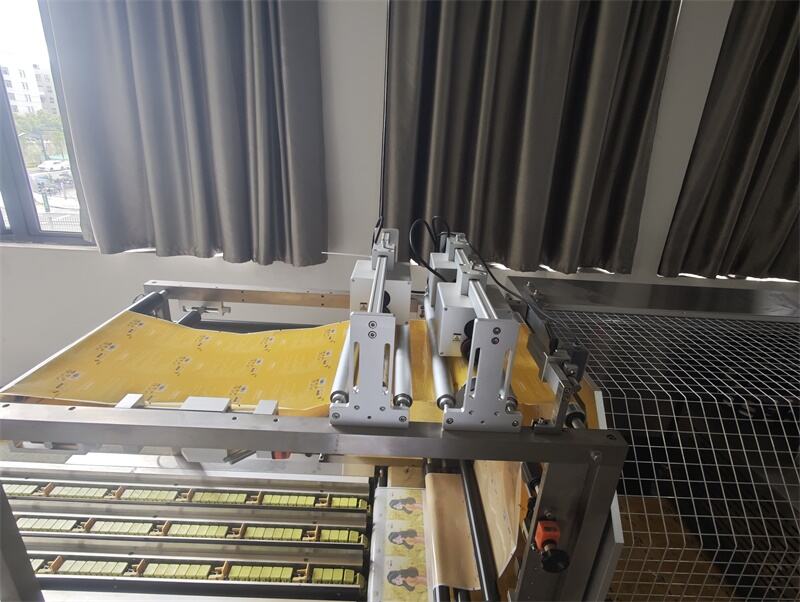

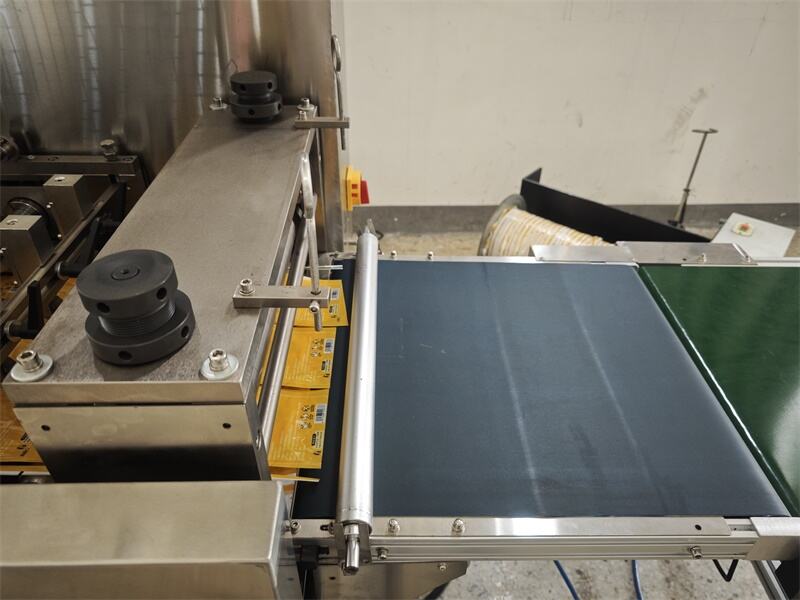

Reciprocating Four Side Seal Packaging Machine

Reciprocating Four Side Seal Packaging Machine

High-Speed Automation：
Servo control ensures fast, precise, and synchronized operation.

Perfect Packaging：
Photoelectric tracking and plate heating produce firm, flat, and uniform bags.

Flexible & Stable：
Quick size changes, tension control, and adaptable sealing for various films.

Introduction

Automatic Warmer Pad Making Machine is developed by our research and development personnel according to the demand of packing market. Can produce different kinds of warm pad to cater to different needs of customers. Such as warm pad, foot warmer pad, warm knee pad, hand warmer pad, shoulder warmer pad, warm stomach pad, warm toe pad and other warm pads.

Specifications and Parameters:

Items	WFS-400
Packing Area	Length: 50-280mm Width: 50-200mm
Packing Speed	20-80times/minute（Depend by pouch size &material）
Output	70*3=210bags （70times/minute, 3bags/1time）
Filling Size	Designed according to customer requirements within the packaging size range, maximum material thickness 15 mm
Film Width	400~820mm
Roll Film Diameter	Max. 420mm
Roll Film Inner Diameter	∅75mm
Film Packing Material	PET/AL/PE;PET/PE;NY/PE;NY/AL/PE;KOPP/PE
Power Supply	AC380V 50Hz Max. 60A (Customized)
Compressed Air(MPa)	0.4-0.6Mpa
Total	Around 17Kw
Dimension	5300×1330×1650mm
Weight	Around 2300kg

Machine Features:

1.Using a multi-axis servo motion control system and human-machine interface touch settings, the position, speed, synchronization, etc. of mechanical moving parts are braked in real time through the servo motion control system, allowing each actuator to operate accurately and autonomously in synchronization. Ensure product packaging quality while increasing packaging speed.

2.The roll film slitting mechanism is used to make the double-sided pattern alignment of the packaging bag accurate and beautiful. The photoelectric tracking and marking system ensures the accuracy of bag sealing, slitting and alignment, ensuring the uniformity of the packaging bag products, and has an automatic counting function.

3.Adjustment is quick and convenient. You only need to replace the plate heat sealing mold to change the packaging size. Other actuators such as horizontal sealing, automatic feeding, batch number printing, cross-cutting and other actuators can be adjusted through data settings in the human-machine interface.

4.Use plate heating to perform four-sided sealing with constant speed. The sealing pressure is digitally adjusted through the servo-driven connecting rod assembly. The bag-shaped flat seal is firm, delicate and beautiful, and the packaging has good sealing performance and high efficiency, reducing mold costs.

5.Fast packaging speed and accurate automatic feeding. It adopts servo-driven continuous feeding, and can add or customize a special feeding system according to the packaged items. This structure is easy to clean and maintain.

6.Add an automatic constant tension system and an automatic correction system to ensure the tension of the film and greatly improve the accuracy of benchmarking and the stability of operation.

7. Strong adaptability to packaging materials. The sealing temperature of this machine has automatic control function and high temperature control accuracy. It can be adapted to a variety of packaging composite films produced at home and abroad.
