Vertical Bagging Machine

High Efficiency & Durable Design:
Stable operation, energy-saving, easy maintenance, and long-lasting structure.

Precise Sealing & Waste Reduction:
Automatic feeding, four-side sealing, flat bags, and 60–80% packaging waste saved.

Advanced Intelligent Control:
PLC programming, touch screen, servo traction, and precise temperature control.

Introduction

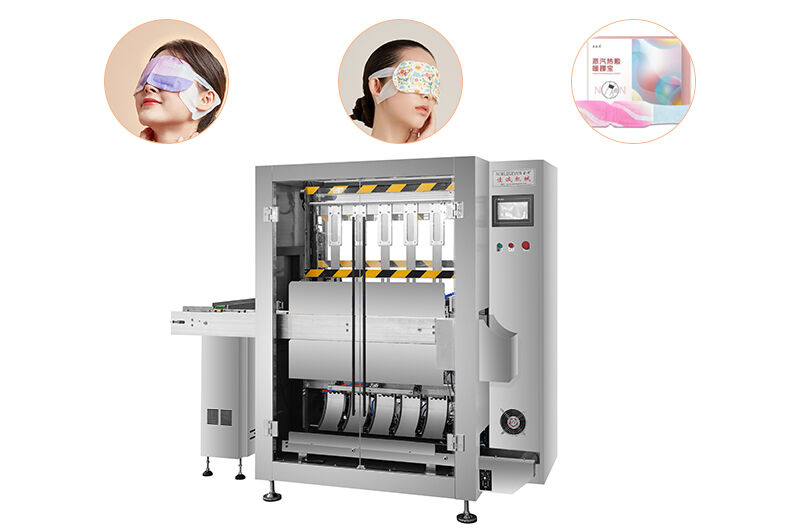

Vertical Bagging Machine is developed by our research and development personnel according to the demand of packing market. It was designed for packing eye mask.

Specifications and Parameters:

Items	LDJ-125
Production capacity	60-120pieces/minute
Bag width	110-125mm
Bag Length	130-145mm
Total Power	6.5Kw( 380V, 50HZ)
Compressed Air(MPa)	0.6-0.8MPa
Dimension	21008801700mm
Weight	900Kg

Machine Features:

1) High efficiency and energy saving, reasonable and beautiful structure, stable operation, convenient maintenance and durability.

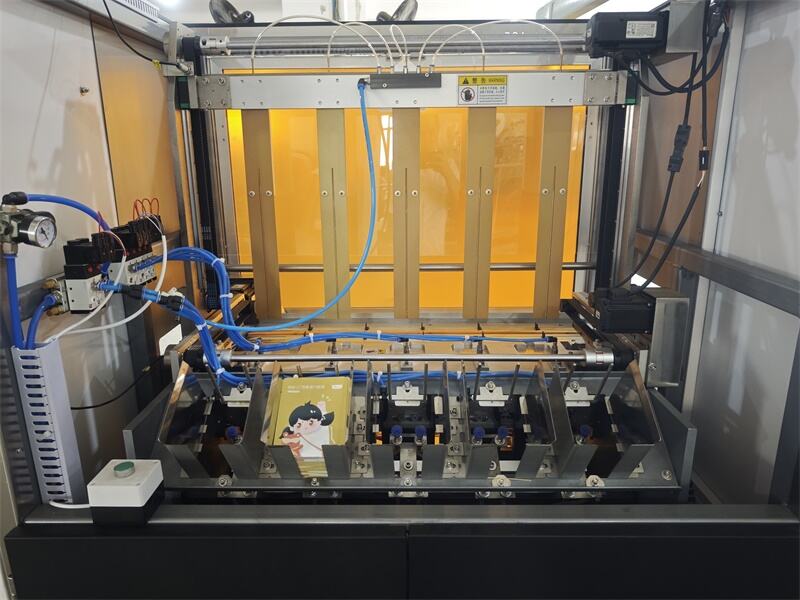

2) Automatic film feeding, plate heating, four-sides sealing , firmly sealed, the bag is flat and beautiful. The horizontal and vertical endless cutting mechanism can save 60-80% of the packaging waste and greatly save the production cost.

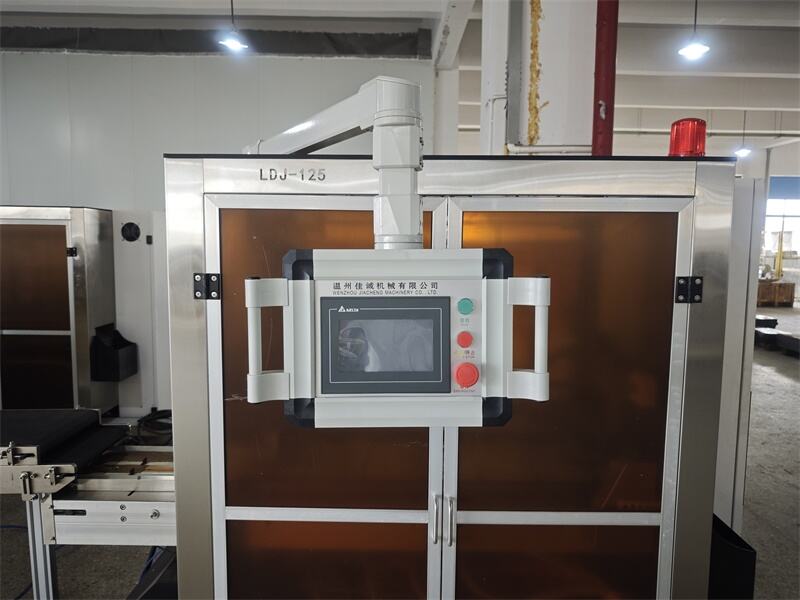

3) Programmable controller (PLC) programming control, touch screen intelligent control, servo system version traction and high-precision temperature control system are adopted.

4) Sensor controls are adopted in pneumatic system. PLC controls are adopted in pneumatic system. PLC control makes the whole machine run smoothly, keeps synchronous stability during the products are to be packed in multi-labor and long-distance.

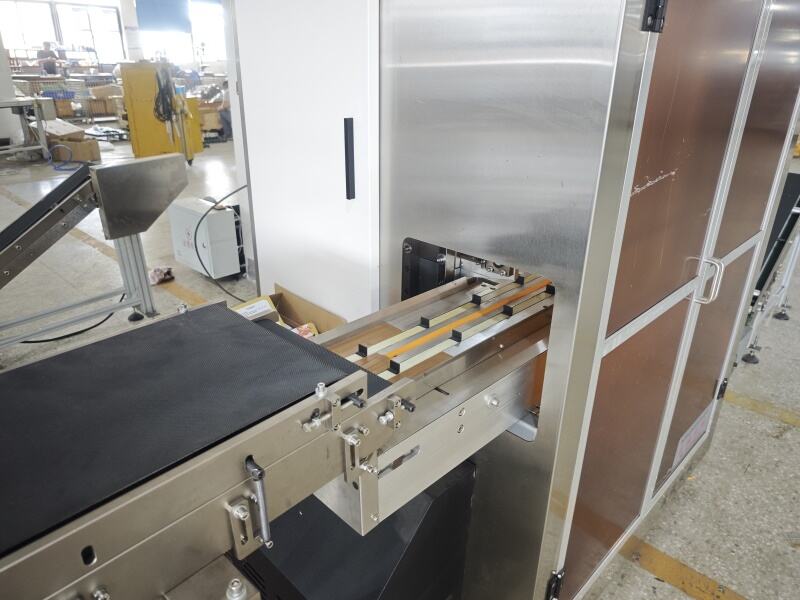

5) Automatic film feeding, automatic feeding, upper and down netting, cylinder sealing, servo traction, stable running, easy operation, high automatic grade. Optional bottom film or cover film cursor tracking for version sealing configuration, double film roll automatic film feed.

6) It can be equipped with pattern calibration device.
