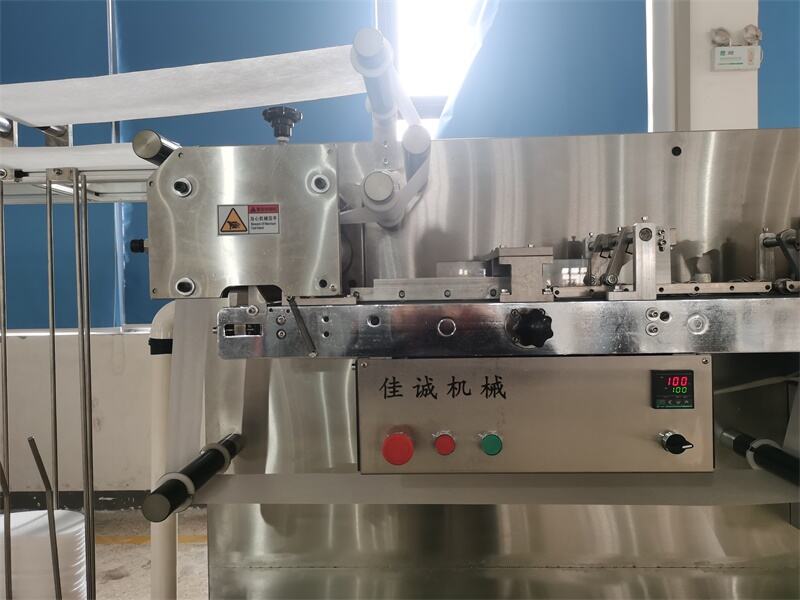

TX-120 Slipper Making Machine

High Efficiency & Space Saving：
Compact footprint, integrates multiple processes, boosts production capacity.

Intelligent Automation：
Automatic feeding, folding, gluing, welding; PLC control, easy and safe operation.

Cost-Effective & Eco-Friendly：
Reduces labor, improves quality, minimizes pollution, practical and economical.

Introduction

TX-120 intelligent high-speed slipper machine is based on the understanding of many disadvantages in the existing market, such as large floor space, large labor consumption, low product quality, complex processing procedures, low production capacity, etc, The R&D department of our company has developed automatic feeding system, automatic film feeding and collecting system, automatic upper folding positioning system, glue spraying and coating system, ultrasonic welding system and rolling cutting mechanism, full servo control system, photoelectric detection system, flexible PLC programmable control system The assembly line operation mode is integrated into one equipment for production operation, which is advanced and reliable in technology, simple and safe in operation. It will completely replace the old complex process flow, save labor costs for users, reduce environmental pollution, improve product quality and output, and cover a small area, which is economical and practical.

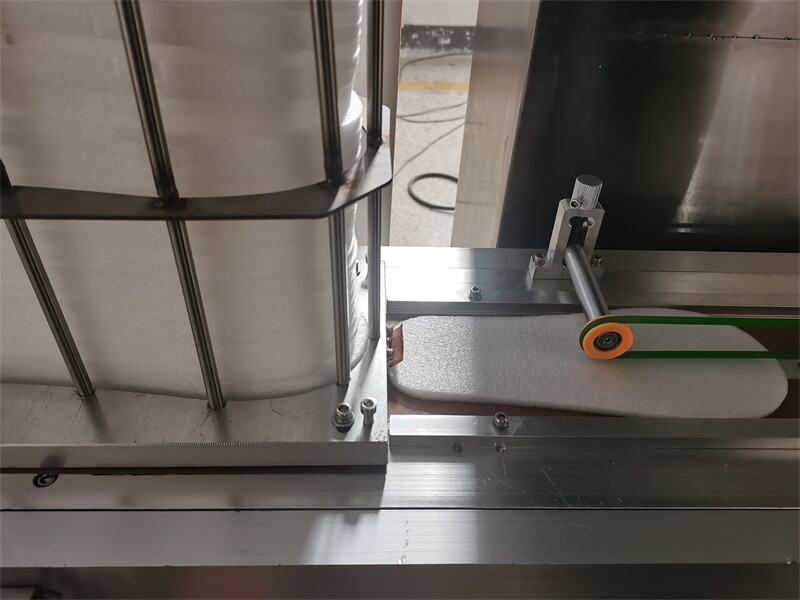

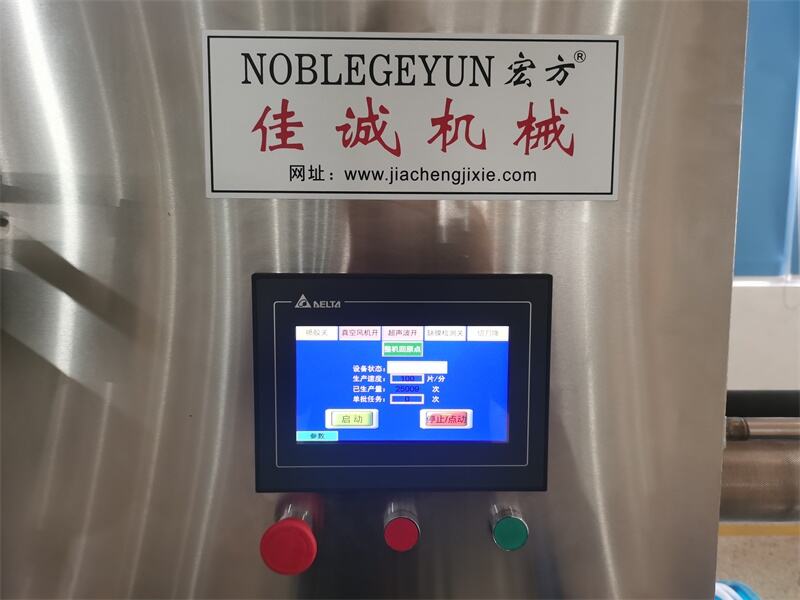

Prefabricated Insole	PLC Control

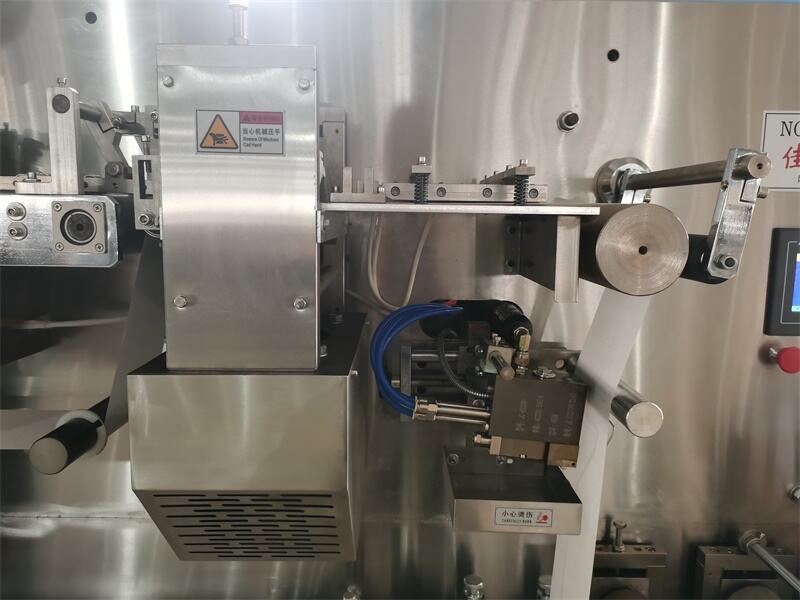

Automatic Glue Spraying	Servo Folding Mechanism

Specifications and Parameters:

Items	TX-120
Production Capacity	60-120 pieces/minute
Max Material Width	540mm
Packing Material	Non woven fabric, EVA, pearl foam cotton
Roll Diameter	75mm
Ultrasonic Frequency	18K(2.2KW50HZ)*2
Total Power	13Kw(380V/220V50HZ)
Compressed Air（MPa）	0.4-0.6MPa
Dimension	41207801780mm
Weight	1800Kg

Machine Features:

1.Intelligent control is realized through the combination of programmable controller (PLC), man-machine interface, photoelectric system, etc. The operation is simple and intuitive.

2.Full servo control is adopted to control the movement of each main station, so as to ensure the real-time synchronous operation of each station according to the design requirements. The synchronization position can be set according to the specifications.

3.The synchronous automatic feeding system is adopted, with automatic guidance and positioning, negative pressure system and automatic difference adjustment device, which can adjust the blanking position at will.

4.The ultrasonic welding system is adopted, with high and reliable welding efficiency, clear and beautiful welding spots, and strong and firm.

5.The rolling cutter mold is made of imported high-performance materials, heat treatment by special process and precision machining. The cutter has a long service life and can be repaired. The finished product is beautiful without burrs.

6.The servo folding mechanism is adopted, which is reasonable in design, convenient in maintenance, simple in adjustment, uniform in shape, stable in operation and accurate in synchronization.

7.The unique automatic delivery mode of prefabricated insole greatly expands the use range of slippers. Prefabricated insoles with different materials and special functions can give slippers different functions, such as one-time home travel, thermal therapy, acupoint conditioning, etc.
